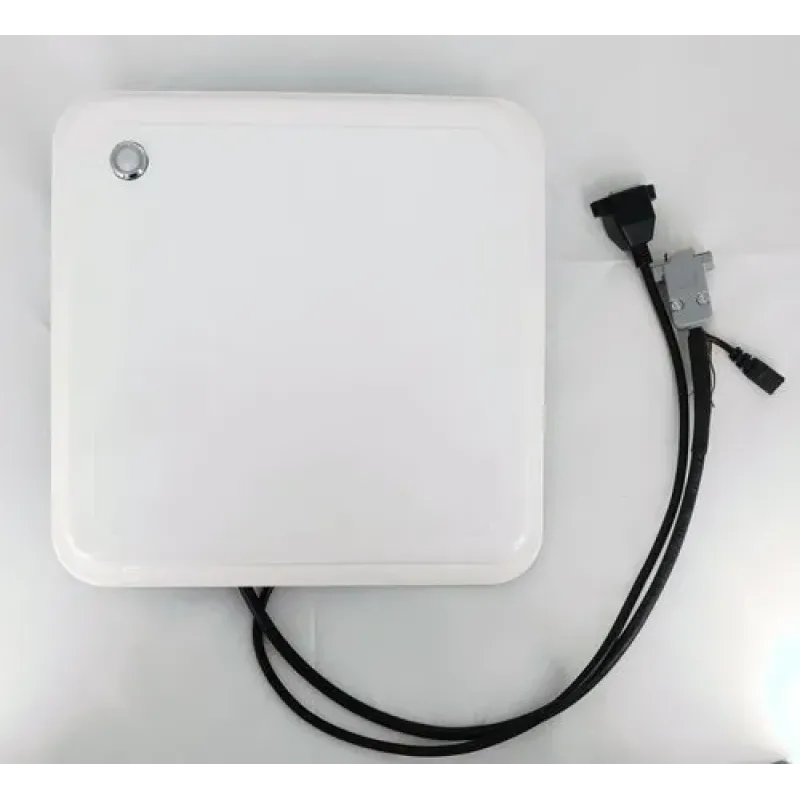

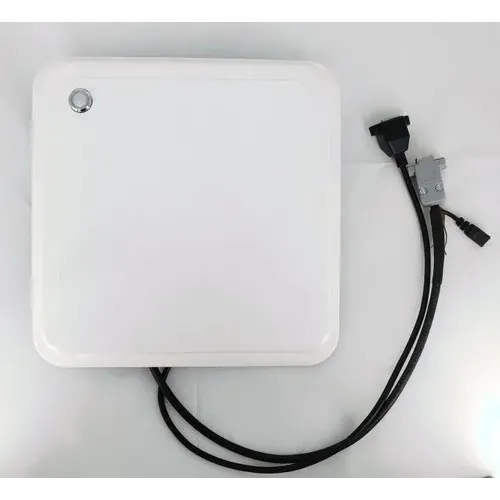

VST UDM9R combines reader with inbuilt antenna into a single, simple-to-use, inexpensive solution. It delivers excellent performance at incredible values. This powerful UHF reader features best in-class air interface performance while the advanced software-based architecture provides a rich application platform that addresses the needs of global deployments, ensuring that features and capabilities can be added as RFID technology continues to evolve. It is characterized by long read range, long product life time, extremely high reliability and low cost of ownership. Its weatherproof design with IP65 rating ensures that the reader is the excellent choice for outdoor usage like Vehicle Access Management, Warehouse Management, parking Lot Management, Toll Management, Employee / Student Tracking and others.
PHYSICAL PARAMETERS
- Dimensions 445mm x 445mm x 55mm
- Weight 2.35 Kg
- Power Consumption 10W
- Software Support SDK Provided
UHF RFID
- Work Frequency Standard ISM 865-867 MHz (IND),865-868 MHz (EU), 902-928 MHz (US)
- Air Interface Protocol ISO18000-6B, EPC Class 1 Gen2 (ISO18000-6C)
- Read Range 0 - 15m
- Write Range 0 - 6m
- Antenna Built-in 9dBi linear/circular polarized antenna
- RF Power Output 0-30dBm (adjustable)
